Add Bookmarks and Outlines to PDFs

How to Add Bookmark to PDF

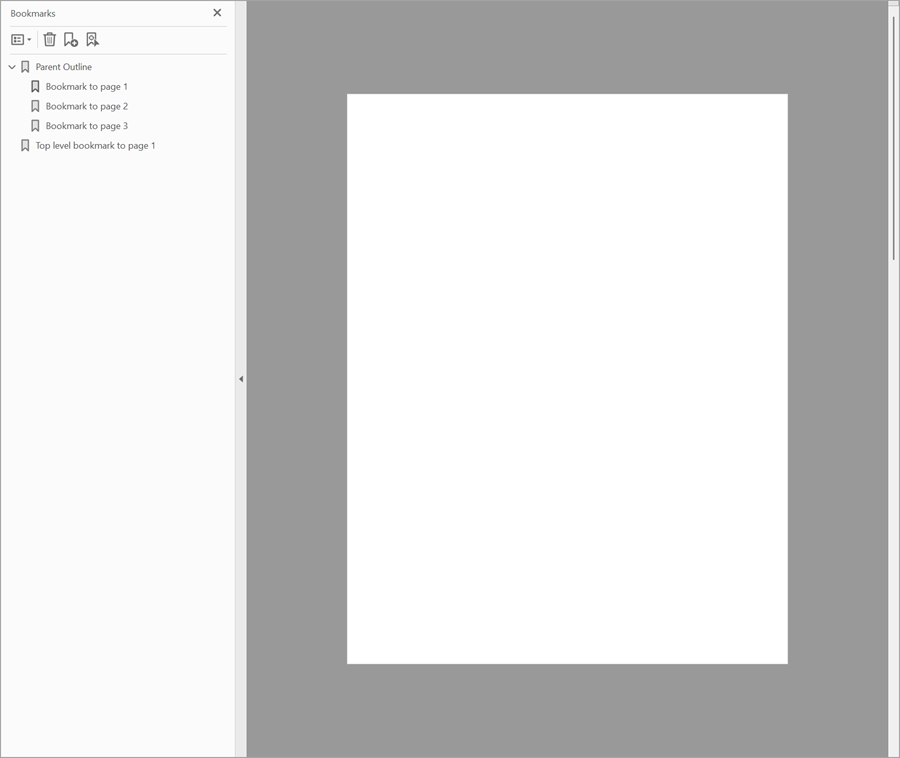

The following steps and C# sample code illustrate how to add bookmarks to a PDF document using DynamicPDF Core Suite for .NET.

Steps for Adding Bookmarks to a PDF Document

1. Create a Document object.
2. Create three Page objects.
3. Create a Outline as a parent object to the document.
4. Add four top level Bookmark object instances, one for each Page instance.
5. For each child Bookmark, specify its parent outline.
6. Add all the pages to the Document instance.
7. Add the Draw method to output the PDF document.

Sample Code - C#

Document document = new Document();
Page page1 = new Page( PageSize.Letter );
Page page2 = new Page( PageSize.Letter );
Page page3 = new Page( PageSize.Letter );

Outline parentOutline = document.Outlines.Add( "Parent Outline" );

page1.Elements.Add( new Bookmark( "Top level bookmark to page 1", 0, 0 ) );

page1.Elements.Add( new Bookmark( "Bookmark to page 1", 0, 0, parentOutline ) );
page2.Elements.Add( new Bookmark( "Bookmark to page 2", 0, 0, parentOutline ) );
page3.Elements.Add( new Bookmark( "Bookmark to page 3", 0, 0, parentOutline ) );

document.Pages.Add( page1 );
document.Pages.Add( page2 );
document.Pages.Add( page3 );

document.Draw(@"Output.pdf");

How to Add Outline to PDF

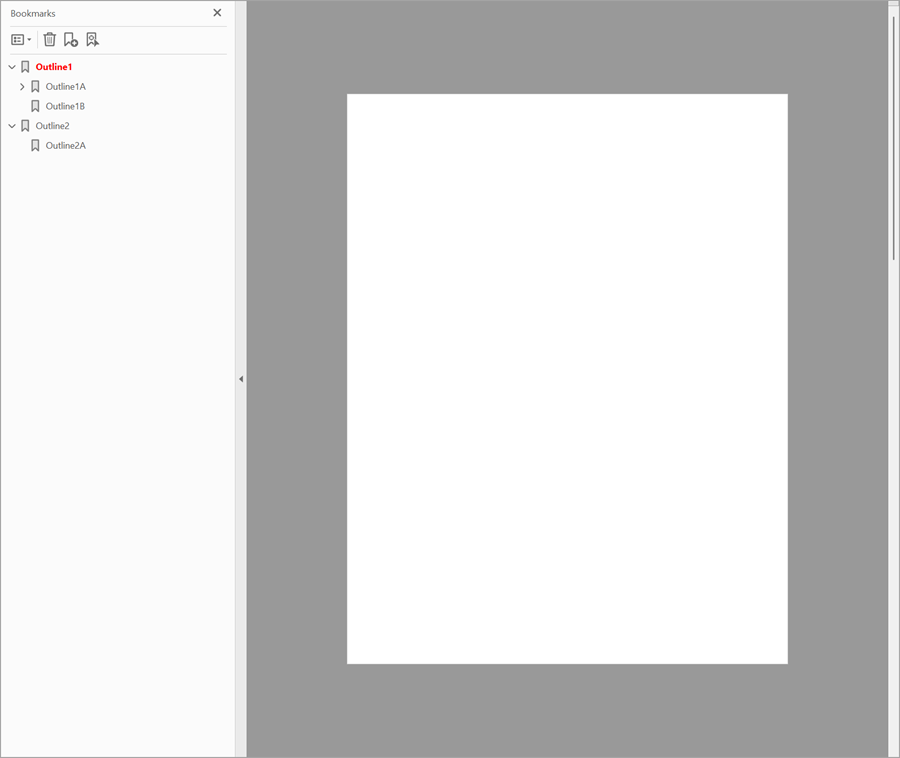

The following steps and C# sample code show how to add outlines to a PDF document using DynamicPDF Core Suite for .NET.

Steps for Adding Outlines to a PDF Document

1. Create a Document object.
2. Create three Page objects.
3. Create an Outline instance and add it the the Document object's Outlines collection.
4. Create two child outlines and add them to the parent outline..
5. Add the Draw method to output the PDF document.

Sample Code - C#

Document document = new Document();
document.Pages.Add(new Page(PageSize.Letter));
document.Pages.Add(new Page(PageSize.Letter));
document.Pages.Add(new Page(PageSize.Letter));

Outline outline1 = document.Outlines.Add( "Outline1" );
outline1.Style = TextStyle.Bold;
outline1.Color = new RgbColor( 1.0f, 0.0f, 0.0f );

Outline outline1A = outline1.ChildOutlines.Add( "Outline1A", new ZoomDestination( 2, PageZoom.FitPage ) );
outline1A.Expanded = false;
Outline outline1A1 = outline1A.ChildOutlines.Add( "Outline1A1", new XYDestination( 2, 0, 0 ) );
Outline outline1A2 = outline1A.ChildOutlines.Add( "Outline1A2", new ZoomDestination( 2, PageZoom.FitHeight ) );
Outline outline1B = outline1.ChildOutlines.Add( "Outline1B", new ZoomDestination( 2, PageZoom.FitWidth ) );

Outline outline2 = document.Outlines.Add( "Outline2", new XYDestination( 3, 0, 300 ) );
Outline outline2A = outline2.ChildOutlines.Add( "Outline2A" );

document.Draw(@"Output.pdf");

GitHub Project

An example project is available on GitHub (examples.dynamicpdf-core-suite-dotnet-core). Examples are provided in C# and VB.NET. Clone or view the example project at GitHub. This specific example discussed on this page are all contained in following classes on GitHub

• C# - BookmarkOutlineExample.cs
• VB.NET - BookmarkOutlineExample.vb

Getting Started

Get started easily by installing DynamicPDF Core Suite for .NET through NuGet or manually. Then, refer to the documentation for more information on using and purchasing the product.

NuGet Package

The easiest way to install DynamicPDF Core Suite is by obtaining the NuGet package using Visual Studio's Package Manager. You can also obtain the NuGet package by downloading it directly. Refer to the installation documentation for more information.

DynamicPDF Core Suite Information

DynamicPDF Core Suite for .NET combines creating, merging, and visual report creation into one powerful product for creating PDF documents. It is ideal for anyone who needs to generate PDF documents or reports or work with existing PDFs in their applications. With a free Evaluation Edition to try and with flexible and royalty-free licensing options, why not start using DynamicPDF Core Suite for .NET today!

• DynamicPDF Core Suite for .NET Product Page
• DynamicPDF Core Suite for .NET Documentation

More Information on Outlines and Bookmarks

• Refer to the Outlines and Bookmarks documentation topic, or
• Chapter 13, Outlines and Bookmarks, in the book DynamicPDF Core Suite for .NET by Example available on GitHub.
