Subreport
Use the Subreport layout element to generate nested reports.
Refer to designer-usersguide-examples for a GitHub example.
To add a Subreport, right-click anywhere in a report's details and select Add Subreport from the context menu.

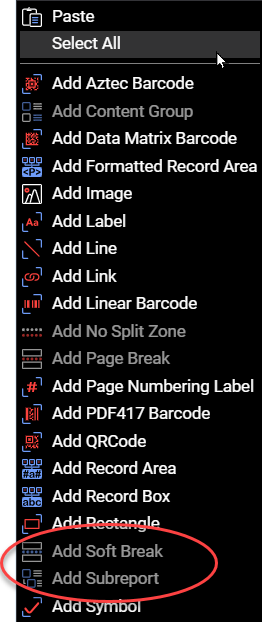

Figure 1. Select Add Subreport from context menu to add a Subreport.
A Subreport layout element adds the new layout element with a header, footer, and detail. Data from the nested JSON array goes in the newly added Subreport layout element's Detail section.

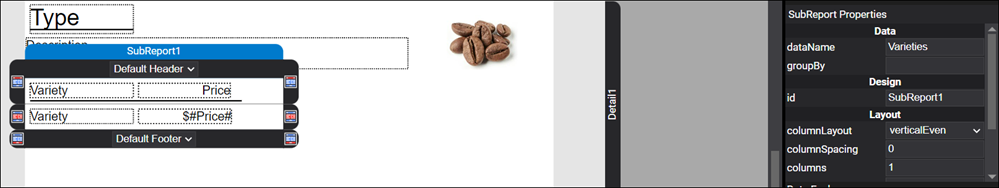

Figure 2. An example illustrating a Subreport layout element.

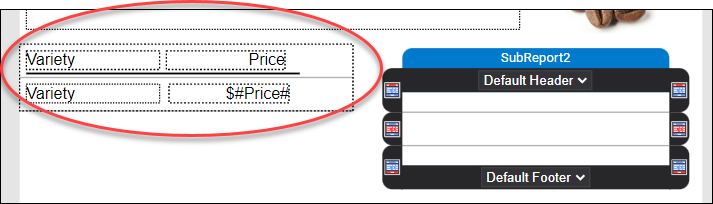

When a Subreport is deselected, only the wireframe is visible.
If creating a header with static top-level JSON fields, consider using a Subreport rather than a header or conditional header.
Properties
| Property | Value | Description |
|---|---|---|
| detailHeight | numeric | A value indicating the height of the Subreport detail. |
| headerHeight | numeric | A value indicating the height of the Subreport header. |
| footerHeight | numeric | A value indicating the height of the Subreport footer. |
| id | text | A value indicating the programmatic identifier of the Subreport. |
| columnLayout | A value indicating how the data in the columns will be laid out. | |
| columnSpacing | numeric | A value indicating the amount of space between columns. |
| columns | numeric | A value indicating the number of columns the Subreport will have. |
| dataName | text | The name of the data that the subreport will be based on. If the data is a single object (or record), the detail section will only be displayed once. If it is a list or collection, the detail section will be displayed once for each object in the list. |
| height | numeric | A value indicating the height of the Subreport. |
| rowSpacing | numeric | A value indicating the amount of space between consecutive rows in the Subreport. |
| width | numeric | A value indicating the width of the Subreport. |
| x | numeric | A value indicating the X coordinate of the Subreport. |
| y | numeric | A value indicating the Y coordinate of the Subreport. |
Subreport Sections
A Subreport, like a Report, consists of a Header, Footer, and Detail section. Each section has it's own properties which are summarized below.

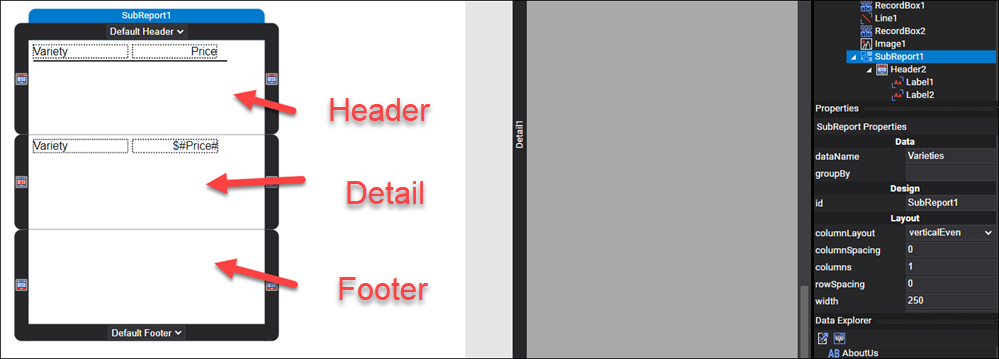

Figure 3. A Subreport layout element's sections.
Header
| Property | Value | Description |
|---|---|---|
| id | text | A value indicating the programmatic identifier of the Subreport header. |
| height | numeric | A value indicating the height of the Subreport header. |
Detail
| Property | Value | Description |
|---|---|---|
| id | text | A value indicating the programmatic identifier of the Subreport detail. |
| height | numeric | value indicating the height of the Subreport detail. |
| autoSplit | true |
false |
Footer
| Property | Value | Description |
|---|---|---|
| id | text | A value indicating the programmatic identifier of the Subreport footer. |
| height | numeric | A value indicating the height of the Subreport footer. |
